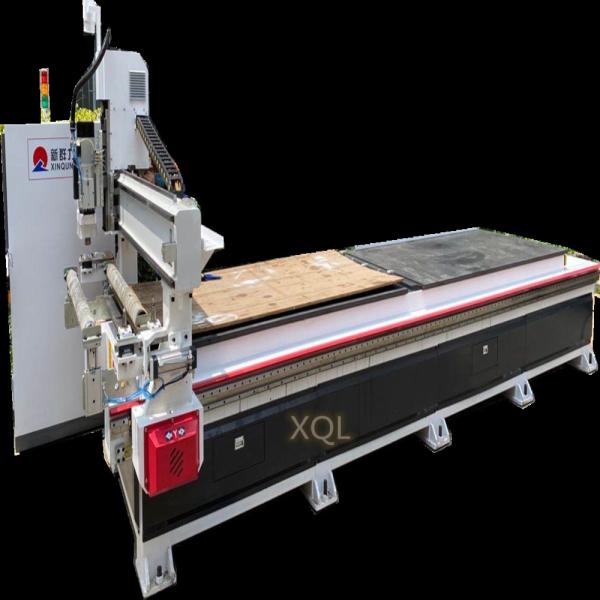

Sofa Factory CNC Splint Cutting Machine Computer Control Machine White Color

1.Working voltage: 380V,50HZ
2.Control System : SYNTEC Industrial control system.
3.Drive mode : Japan Fuji servo drive
4.Spindle: 9.0kw automatic tool change (4 tool magazines)
5.Frequency converter : Quartet 9.0kw
6.X,Y,Z-axis: Taiwan Yintai 25# rectangular guide
X, Y axis: helical rack
Z axis: Taiwan TBI ball screw

7.Double table, with pressure roller structure, sub-area control
8.Frame use national standard rectangular steel by welding
9.Range of effective processing : 1300*5000mm;
10.Empty operating speed: 0-40000mm/min
11.Processing speed: 0-25000mm/min
12.Processing accuracy: 1mm
13.Reposition accuracy: ±0.02mm
14.Total weight: about 2.4tons
15.Typesetting software : English
16.System interface:English
17.Japan Shimpo reducer 3 pcs

Shenzhen Xinqunli Machinery Co., Ltd. was established in January 1995. It is the earlier enterprises engaged in professional research and development and manufacturing of sofa machinery in China. The company has always been adhering to the business tenet of "innovation, teamwork, and teamwork", and is committed to realizing industrial upgrading for sofa manufacturing enterprises and using standardization, mechanization, and information technology to add impetus to the production of sofa enterprises.

The products developed by the company have passed CE product certification and various quality index tests of the National Woodworking Machinery Testing Center under strict quality control, and have won a number of national technical patents. At the same time, the company has a professional technical team to provide customers with professional technical consultation, factory process planning, and professional mechanical products and other services. The company's products occupy most of the domestic market share and are exported all over the world.
